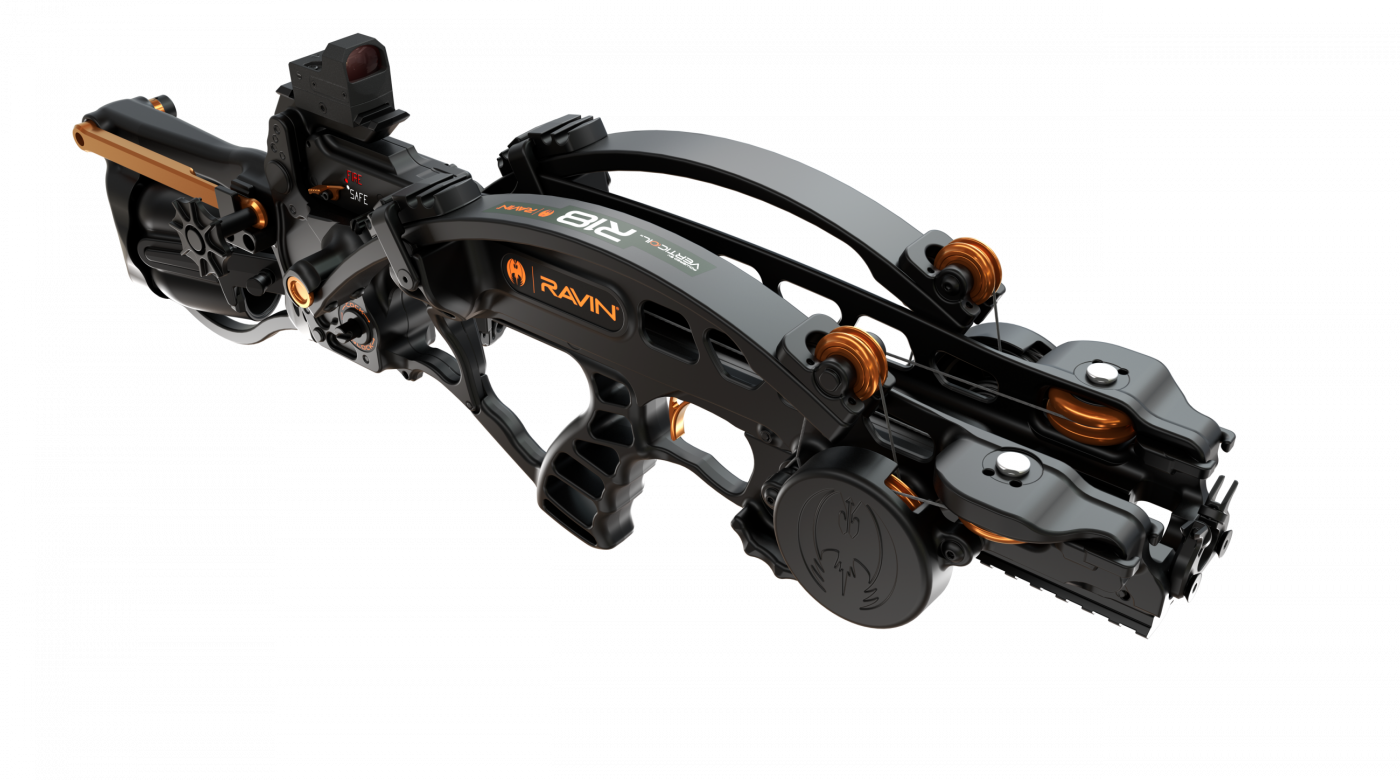

Ravin R18

The Ravin R18 introduces an entirely new class of ultra-compact, vertical-limb crossbows. Designed for saddle hunters, tight-ground setups, and anyone who needs maximum mobility without sacrificing performance, the R18 packs Ravin’s legendary accuracy into one of the smallest crossbows ever built. At just 4.75” wide and 25” long, this lightweight 6-lb powerhouse still delivers a solid 330 FPS and 85 ft-lbs of kinetic energy—more than enough to fill any tag.

Built around Ravin’s revolutionary VertiCoil™ Cam System, the R18 coils cables and strings vertically around the cams, allowing an axle-to-axle height of just 1.3” cocked. Combined with the Versa-Draw™, Trac-Trigger™, and Frictionless™ Flight System, the R18 offers unmatched balance, smooth operation, and Ravin’s signature rifle-like accuracy.

Key Features

Ultra-Compact Vertical Design

- Only 4.75” wide and 25” long with the removable stock

- Perfect for saddle hunting, brushy setups, tree stands, and ground blinds

- Lightweight at just 6 lbs

Technology & Performance

VertiCoil™ Cam System

- Cams rotate 720°, coiling strings and cables vertically

- Axle-to-axle: 1.3” cocked, 4.1” uncocked

- Creates the most compact Ravin bow ever made

Versa-Draw™ Integrated Cocking System

- Built directly into the stock

- Only 12 lbs of cocking force

- Ambidextrous

- Allows safe cocking and un-cocking

Trac-Trigger™ Firing System

- Trigger unit slides forward to latch at the exact string center

- Ensures perfectly straight-line nock travel

- Delivers Ravin’s renowned downrange accuracy

Frictionless™ Flight System

- Arrow and string float above the rail—no friction

- Increases string life and boosts consistency

- Produces exceptionally tight groups

Accuracy

Everything Ravin builds revolves around accuracy—and the R18 is no exception. With its balanced vertical-limb design, free-floating flight system, and center-latching trigger, the R18 delivers rifle-like precision shot after shot.

Specifications

- Speed (400 gr.): 330 FPS

- Speed (350 gr.): 330 FPS

- Kinetic Energy: 85 ft-lbs

- Weight: 6 lbs

- Length: 25"

- Width: 4.75" (uncocked)

- Draw Force: 12 lbs

- Powered by: VertiCoil™ Cam System

- Limbs: Fiberglass

- Riser: CNC Aluminum

- Stock: Removable, Nylon-Fiber

- SKU: R080

Included in the Box

- Ravin 3-Dot Reflex Sight

- Auto safety + anti-dry fire system

- Integrated sling mounts

- Detachable stock

- Detachable & integrated quiver

- 3x R18 Arrows (.003”, 16”, 350 gr. total) with field points

- Removable draw handle
