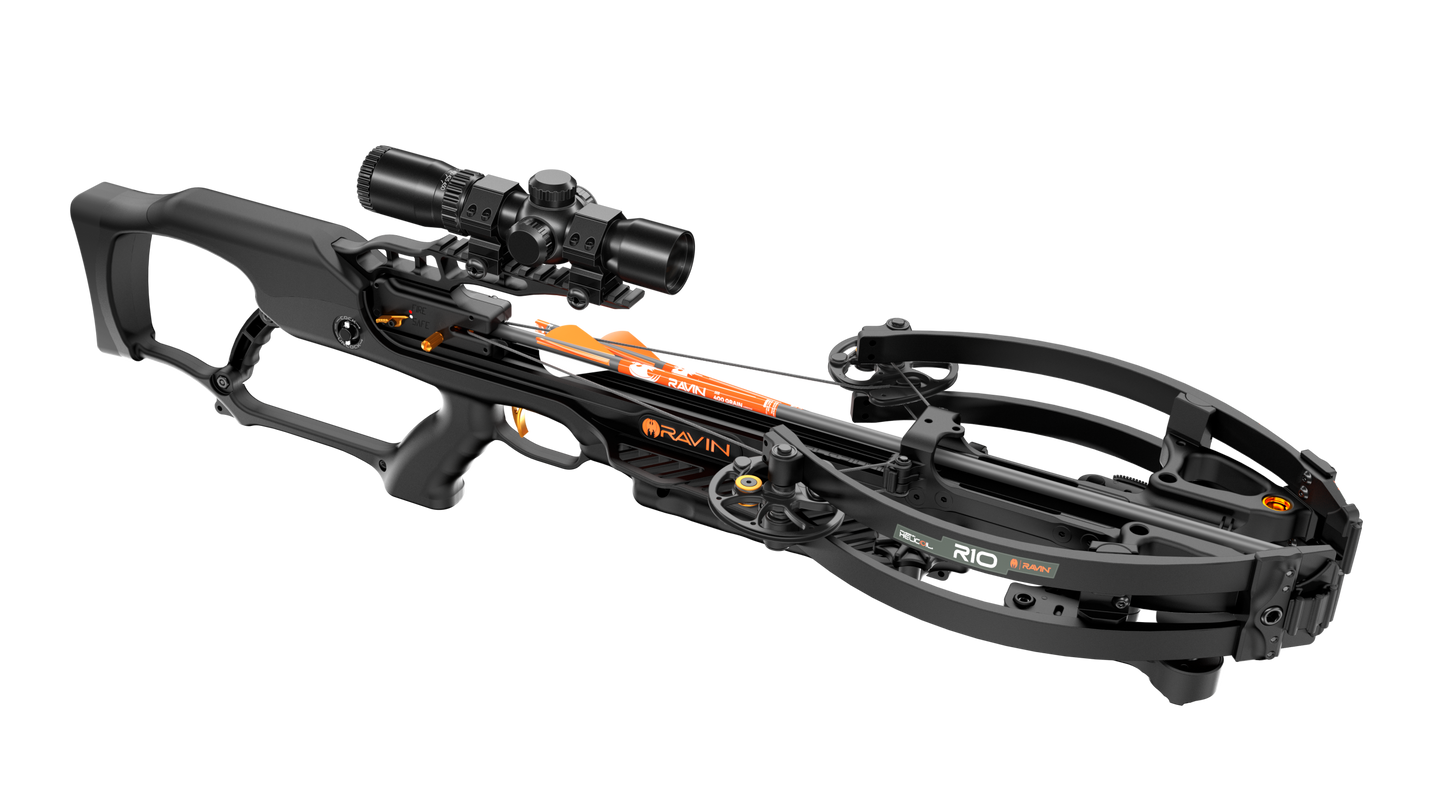

Ravin R10

The Ravin R10 is one of the most popular and proven models in the Ravin lineup—compact, deadly accurate, and built around the revolutionary HeliCoil™ Technology. Delivering blistering speeds of 400 FPS with a 400-grain arrow, the R10 offers true rifle-like precision out to 100 yards while maintaining a lightweight and maneuverable profile at just 6.8 lbs and 33” overall length.

Mid level staff pick: The Ravin R10 offers reliable power and smooth shooting in a user-friendly package — a great mid-range crossbow for hunters wanting strong performance without top-end complexity.

Whether you're hunting big game in tight timber or taking precise long-range shots, the R10 gives you Ravin’s full accuracy package at an exceptional value. Pre-tuned, pre-assembled, and ready to shoot straight out of the box, the R10 remains the perfect introduction to Ravin’s legendary engineering.

Why Shooters Love the R10

Unmatched Accuracy

Ravin designs every bow with one goal—rifle-like precision. The R10’s balanced cams, free-floating flight system, and center-latching trigger work together to produce repeatable accuracy out to 100 yards.

HeliCoil™ Technology

This revolutionary cam system coils cables in helical grooves above and below the cams, keeping them perfectly level through the entire draw cycle.
Benefits include:

- 340° cam rotation

- Perfect cam balance

- Reduced crossbow width

- Increased efficiency & accuracy

Core Technologies

Versa-Draw™ Cocking System

- Fully integrated and ambidextrous

- Only 12 lbs of cocking force

- Allows safe cocking and un-cocking

- Works seamlessly with the Trac-Trigger system

- Compact and built directly into the stock

Trac-Trigger™ Firing System

- Trigger mechanism slides forward and clamps to the exact center of the string

- Ensures perfectly straight-line nock travel

- Delivers unmatched downrange consistency

Frictionless™ Flight System

- Arrow and string float above the rail—zero friction

- Improves accuracy and extends string/cable life

100-Yard Illuminated Scope

Included with every R10 (non-Sniper models):

- 20–100 yard reticles

- Red & green illumination

- Fully multi-coated lenses

- Fog-proof, shockproof, waterproof

Specifications

- Speed (400 gr.): 400 FPS

- Kinetic Energy: 142 ft-lbs

- Product Weight: 6.8 lbs

- Length: 33"

- Draw Force: 12 lbs

- Powered By: HeliCoil™ Technology

- SKU: R014

Included in the Box

- Built-in Versa-Draw™ Cocking System & removable draw handle

- Built-in sling mounts

- Anti-dry fire & auto safety features

- Removable quiver + mounting bracket

- 3x Ravin .003 Arrows with field points (400 gr. total)

- 100-Yard Illuminated 450 Scope
